Streamlines, Streaklines, Pathlines, and Timelines

These animated gif images illustrate the differences between streamlines, streaklines, pathlines, and timelines. The flow is steady shear flow in the gap between two flat plates, with the top plate moving at velocity V to the right and the bottom plate stationary.

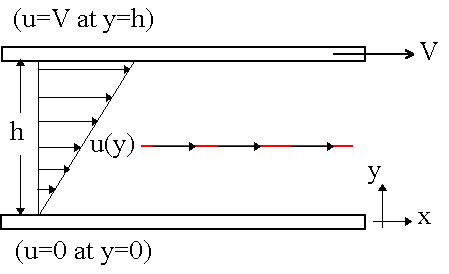

Streamline

Streakline

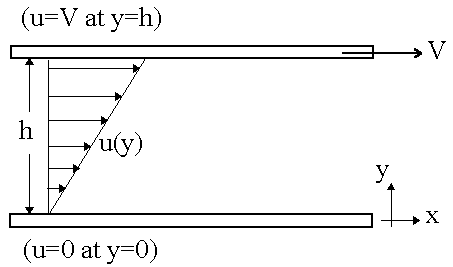

Pathline

Timeline
