Timothy W. Simpson,^* Andrew J. Booker,^† Dipankar Ghosh,^‡ Anthony A. Giunta,^§ Patrick N. Koch,^¶ and Ren-Jye Yang^#

Abstract
This paper summarizes the discussion at the Approximation Methods Panel that was held at the 9^th AIAA/ISSMO Symposium on Multidisciplinary Analysis & Optimization in Atlanta, GA on September 2-4, 2002. The objective in the panel was to discuss the current state-of-the-art of approximation methods and identify future research directions important to the community. The panel consisted of five representatives from industry and government: Andrew J. Booker from The Boeing Company, Dipankar Ghosh from Vanderplaats Research & Development, Anthony A. Giunta from Sandia National Laboratories, Patrick N. Koch from Engineous Software, and Ren-Jye Yang from Ford Motor Company. Each panelist was asked to (1) describe the current state-of-the-art of the approximation methods used by his company, (2) give one or two brief examples of typical uses of these methods by his company, (3) describe the current challenges in the use and adoption of approximation methods within your company, and (4) identify future research directions in approximation methods. Common themes that arose from the discussion included differentiating between Design of Experiments and Design and Analysis of Computer Experiments, visualizing experimental results and data from approximation models, capturing uncertainty with approximation methods, handling problems with large numbers of variables, and educating engineers in using approximation methods.

Keywords: approximation methods, surrogate models, response surfaces, kriging, design of experiments, analysis of variance

Author Information:
* Assistant Professor, Department of Mechanical & Nuclear Engineering, 329 Leonhard Building, Penn State University, University Park, PA 16802. Email: tws8@psu.edu. Corresponding author. Phone/fax: (814) 863-7136/4745.
† Associate Technical Fellow, Mathematics and Computing Technology Organization, The Boeing Company, Bellevue, WA 98124. Email: andrew.j.booker@pss.Boeing.com.
‡ Product Manager, Vanderplaats Research & Development, Inc. Colorado Springs, CO, 80906. Email: dg@vrand.com.
§ Optimization and Uncertainty Estimation Department, Sandia National Laboratories, Albuquerque, NM 87185. Email: patrick.koch@engineous.com.
# Senior Staff Technical Specialist, ASME Fellow, Optimization & Robustness, Safety Research & Development Department, Ford Research Laboratory, Dearborn, MI 48124. Email: ryang@ford.com.

Computer-based simulation and analysis is used extensively in engineering for a variety of tasks. Despite the steady and continuing growth of computing power and speed, the computational cost of complex high-fidelity engineering analyses and simulations maintains pace. For instance, Ford Motor Company reports that one crash simulation on a full passenger car takes 36-160 hours.¹ The high computational expense of such analyses limits, or often prohibits, the use of such codes in engineering design and multidisciplinary design optimization (MDO). Consequently, approximation methods such as design of experiments and response surface models are commonly used in engineering design to minimize the computational expense of running such analyses and simulations. The basic approach is to construct a simplified mathematical approximation of the computationally expensive simulation and analysis code, which is then used in place of the original code to facilitate multidisciplinary design optimization, design space exploration, reliability analysis, etc. Since the approximation model acts as a surrogate for the original code, it is often referred to as a surrogate model, surrogate approximation, approximation model, or metamodel (i.e., a "model of a model"²). A variety of approximation models exist (e.g., polynomial response surfaces, kriging models, radial basis functions, neural networks, multivariate adaptive regression splines), and recent reviews and comparisons of many of these approximation model types can be found in Refs. 3-9.

To gain a better understanding of how approximation methods are currently viewed and being used by industry and government agencies, a panel discussion on Approximation Methods was held at the 9^th AIAA/ISSMO Symposium on Multidisciplinary Analysis & Optimization (MA&O) in Atlanta, GA on September 2-4, 2002. The objective in the panel was to discuss the current state-of-the-art of approximation methods and identify future research directions important to the community. The panel consisted of five representatives from industry and government: (1) Andrew J. Booker from The Boeing Company, (2) Dipankar Ghosh from Vanderplaats Research & Development, (3) Anthony A. Giunta from Sandia National Laboratories, (4) Patrick N. Koch from Engineous Software, and (5) Ren-Jye Yang from Ford Motor Company. Each panelist was asked to (1) describe the current state-of-the-art of the approximation methods used by his company, (2) give one or two brief examples of typical uses of these methods by his company, (3) describe the current challenges in the use and adoption of approximation methods within your company, and (4) identify future research directions in approximation methods.

The remainder of this paper summarizes the discussion that occurred at the panel and is intended to serve as a record for the approximation methods community at large who were unable to attend. Section II contains a brief overview of the example applications discussed by the panelists along with a list of the approximation software presented during the panel. Common themes that arose from the discussion included differentiating between Design of Experiments and Design and Analysis of Computer Experiments (Section III), visualizing experimental results and data from approximation models (Section IV), capturing uncertainty with approximation methods (Section V), and handling problems with large numbers of variables (Section VI). A brief summary of the questions that followed the panelists’ opening remarks are discussed as part of the closing remarks in Section VII along with future challenges such as educating engineers in using approximation methods.

A variety of applications were discussed by the panelists, indicating the wide variety of uses for approximation methods in engineering design and MDO. These applications ranged from space station power systems, to fluid flow problems and oil tanker design, to structural design and automotive crashworthiness. A brief overview of each example follows.

Booker described a Design of Experiments approach that was used to verify the performance of large DC power systems for a space station.^10-11 Up to 30 input loads could be switched ON/OFF, and Design of Experiments was used to analyze the performance of the system and determine operating conditions to achieve a desired phase margin. Since each load could be switched either ON or OFF, a 2-level fractional factorial was used to analyze the system, and analysis of variance (ANOVA) was used to estimate main effects.

An aircraft jet engine inlet design problem involving 11 geometry parameters used a 12-pt Plackett-Burman design¹² to achieve an accurate approximation to maximize the air flow rate on the inlet surface.¹³ Initially, the turnaround time to obtain response values was two weeks. The engineers were able to reduce the turnaround time (eventually to one day) by automating the set-up for analysis. The design was subsequently successively augmented by "folding over" the design to resolve interactions and adding a center point and star points to estimate quadratic effects. The benefit of the particular experimental design approach on this problem was the ability to sequentially augment the design as turnaround time was reduced.

A fluid flow example involving the design of a cooling system¹⁴ was also discussed during the panel, see Figure 1. The example consisted of 12 design variables, 10 constraints, and one objective function; feasibility and convergence were achieved in 11 iterations, requiring only 24 calls of Fluent, a computationally expensive fluid flow analysis package.

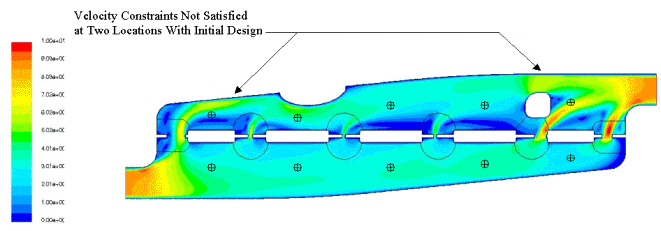

Figure 1. Visualization of Fluid Flow through Cooling System Using Fluent

An oil tanker conceptual design problem was used to compare the accuracy of a single global approximation model against two disciplinary approximation models—one for the tanker’s hydrodynamic analyses and one for the tanker’s structural analyses—that provided parameters for cost estimation.¹⁵ Both approximation models yielded an improvement in the objective function (i.e., return on investment), but the two disciplinary approximation models required fewer expensive analyses than the global approximation model did.

Approximation methods for structural analysis and automotive crashworthiness were discussed by several panelists. An automobile design example involving the use of topology optimization to improve the structural rigidity of the body was described.¹⁶ Vehicle safety analysis is a complex and computationally expensive process, and researchers at Ford are investigating the accuracy of different approximation types for automotive crashworthiness studies.^1,17-18 Yang, et al.¹⁸ stress the importance of uniform sampling when only small sets of sample points are available due the computational expense of running crash simulations such as that shown in Figure 2a. A probabilistic formulation for addressing uncertainty in automotive design was also presented to help identify designs that are robust to the multiple crash scenarios (see Figure 2b) that are considered during automotive crashworthiness studies.^19-20

Figure 2. Automotive Crashworthiness¹⁸

In addition to these examples, several software packages for building, constructing, validating, and optimizing approximation models were also discussed during the panel. To avoid commercialism and bias, the reader is referred to the following references and URLs to learn more about the capabilities of the approximation software packages discussed by the panelists:

• DAKOTA: Ref. 21 and http://endo.sandia.gov/DAKOTA.
• iSIGHT: Ref. 22 and http://www.engineous.com/products.htm.
• VisualDOC: Ref. 23 and http://www.vrand.com/visualdoc3info.htm.

In addition to these packages, Design Explorer is being developed at The Boeing Company to provide similar capabilities.²⁴

As mentioned previously, several common themes arose from the panel discussion, including the need to differentiate between traditional Design of Experiments (DOE) and response surface (RS) modeling and Design and Analysis of Computer Experiments (DACE), which often employs kriging models, see Figure 3. In the "classical" design and analysis of physical experiments, random variation is accounted for by spreading the sample points out in the design space and by taking multiple data points (replicates) as shown in the figure. This is an important distinction between physical experiments, which have random error, and computer experiments, which are often deterministic (i.e., the same output is obtained each time the same input is given), that was made frequently during the panel. Sacks, et al.²⁵ state that the "classical" notions of blocking, replication, and randomization are irrelevant when it comes to deterministic computer experiments; thus, sample points should be chosen to fill the design space. Space filling experimental designs include latin hypercube designs,²⁶ orthogonal arrays,^27-28 uniform designs,^29-30 Hammersley sampling sequences,³¹ and minimax and maximin designs³² to name a few. A recent comparison of several space filling designs can be found in Ref. 3

Figure 3. Comparison of DOE/RS and DACE/Kriging

Once sample data has been gathered, response surface modeling typically employs least squares regression to fit a polynomial model, typically first- or second-order, to the sampled data. Additional details on least squares regression can be found in a number of texts.^33,35-36 Kriging models are constructed using maximum likelihood estimation (see, e.g., Ref. 25, 34, 37-40) and typically interpolate the data, providing an exact fit of the sampled data. Non-interpolative kriging models that "smooth" noisy data can also be developed.^41-43

Once the approximation model is constructed, it must be validated in order to ensure that it is sufficiently accurate to use as a surrogate for the original code. Validation of response surface models is typically based on: (a) testing statistical hypothesis (t-tests and F-statistics) derived from error estimates of the variability in the data, (b) plotting and checking the residuals, and (c) computing R², the ratio of the model sum of squares to the total sum of squares, and R²_adj, which is R² adjusted for the number of parameters in the model.³³ Jin, et al.⁵ discuss multiple performance metrics for comparing approximation models based on accuracy, efficiency, robustness, model transparency, and simplicity; Yang added that Gearhart and Wang⁴⁴ discuss metrics for comparing response surfaces models of different order to identify the "best" model.

Sacks, et al.²⁵ and Welch, et al.⁴⁵ state that statistical testing is inappropriate when it comes to deterministic computer experiments which lack random error; therefore, cross-validation and integrated mean square error (MSE) are often employed to assess the accuracy of a kriging model. A simplified procedure for leave-one-out cross validation of kriging models is presented by Mitchell and Morris,⁴⁶ but recent studies by Meckesheimer, et al.⁴⁷ found that leave-one-out cross validation does not work well for validating kriging models. Leave-one-out cross validation often under-estimates the true root mean square error in a kriging model, and they suggest using the more general leave-k-out cross validation for kriging models with k=0.1n or n^1/2 where n is the number of sample points used to fit the model.

The importance of visualization was stressed by nearly every panelist. First, visualization is useful for examining the experimental results themselves and can be used to detect potential outliers in the data. Booker described a case were an errant run of a simulation code yielded a response about 10⁶ orders of magnitude greater than the other responses, which caused the resulting kriging approximation to fit poorly. The engineers had not noticed the outlier when they examined the experimental data file, but it showed up immediately when the design space was plotted in 3D.

In addition to viewing the experimental results, approximation models also provide a useful surrogate for visualizing the entire design space. Koch gave the example shown in Figure 4 of three approximation models fit to the same set of sample data—all three can be used to view the design space, but which is the most accurate? Based on the sample data, this is found to be a highly non-linear design space that cannot be accurately represented by a second-order RS model as seen in Figure 4a. Obviously a higher-order polynomial response surface model can be constructed, a fourth-order RS model is shown in Figure 4b, but this often requires more sample data than is readily available. The best fit of the sample data is provided by the kriging model shown in Figure 4c, which has sufficient flexibility to fit the highly non-linear design space. An example of a graphical comparison of response surface and kriging models for the design of an aerospike rocket nozzle can be found in Ref. 40.

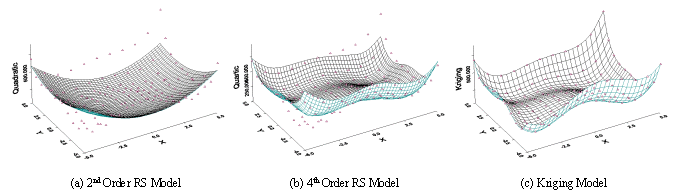

Figure 4. Graphical Comparison of Response Surface and Kriging Model

Visualization also plays an important role in optimization. Ghosh stressed the importance of viewing the history of the objective function during optimization to monitor system performance. Koch advocated using the approximation model to view design variable values in real-time as they changed during optimization. Booker stated that visualization is helpful in understanding why a point is optimum and how it might be improved if constraints are changed or relaxed.

Panelists emphasized that these visualization capabilities do not have to be very sophisticated. Booker uses bar charts and pie charts to display functional ANOVA results to help identify important main effects and interactions based on the sample data.^11,34,48 Depending on the type of experimental design, the functional ANOVA can be computed directly, if using an orthogonal array of strength of strength 3 or higher²⁸, or can be estimated from the approximation model itself. Booker showed results from a sinusoidal test function proposed by Giunta and Watson³⁹ to demonstrate the useful information that could be gained through functional ANOVA but with some caution when using approximate models to estimate the ANOVA.⁴⁹

Approximation methods are becoming popular tools for modeling uncertainty and reducing the computational expense of probabilistic analysis during probabilistic design optimization. Koch stated that a variety of probabilistic methods have been developed to model and assess the effects of known uncertainties by converting deterministic problem formulations into probabilistic formulations, but until recently the computational expense of probabilistic analysis of a given design often precluded its application to real engineering design problems, and probabilistic optimization has thus been considered impractical, particularly for complex multidisciplinary problems. He stated that approximation methods are finding new uses in reducing the computational expensive of probabilistic analysis to make probabilistic optimization more tractable. For instance, approximation models are being used at Ford to incorporate uncertainty into automotive crashworthiness studies.^19-20 Koch also outlined a procedure for using approximation methods to facilitate reliability analysis and robust design optimization, see Figure 5. As an example, the oil tanker example described in Section II was used to compare the performance of response surface and kriging approximations for six sigma based probabilistic design optimization in Ref. 50.

Figure 5. Probabilistic Analysis Using Approximation Methods⁵¹

Giunta used the plot in Figure 6 to illustrate the differences between a global non-robust optimum and a local robust optimum for a computational shock physics application.⁵² The application uses a large finite element code to simulate the shock physics involved with imploding an inertial confinement fusion capsule that is subject to manufacturing variation. Given manufacturing variation in the radius of the outer layer of plastic ablator material that surrounds the capsule, he stated that was more important to find robust, "flat" regions in the design space that are insensitive to these variations than it was to find the global optimum.

Figure 6. Robust Design in Shock Physics⁵³

Giunta presented the following formulation for simulation-based optimization under uncertainty:

where S(x,u) are statistical metrics (e.g., means, standard deviations, failure probabilities, etc.) and W and A are weighting vectors/matrices. Approximation models are employed for f(x), g(x), and S(x,u) to reduce the computational expense of these analyses. Detailed results for the computational shock physics example shown in Figure 6 can be found in Ref. 53. Giunta also mentioned that approximation models are useful for reducing the numerical noise that might occur in the output responses, citing his earlier work wherein response surface models helped smooth numerical noise in an aerodynamic analysis example.⁵⁴ While optimization and uncertainty quantification are becoming more important, they are still not viewed as critical path items at Sandia; he said the focus is still on "getting the physics right."

Often referred to as the "curse of dimensionality,"^55-57 a constant challenge in building accurate approximation models is handling problems with large numbers of variables: the more design variables you have, the more samples you need to build an accurate metamodel. This becomes increasingly important when modeling uncertainty because the design (input) variables and the uncertain (noise) variables must be captured in the model, thereby increasing the dimensionality of the design space even more.

Screening experiments are often employed to reduce the set of factors to those that are most important to the response(s) being investigated. Statistical experimentation is used to define the appropriate design analyses that must be run to evaluate the desired effects of the factors. Often two level fractional factorial designs⁵⁸ or Plackett-Burman¹² designs are used for screening, and only main (linear) effects of each factor are investigated.

Among the earliest such work, Box and Draper⁵⁹ proposed a method to gradually refine a response surface model to better capture the real function by "screening" out unimportant variables. Ghosh discussed the use of intermediate design variables to reduce the dimensionality of the design space; a topology optimization example of an automobile body to improve structural rigidity was given as an example.¹⁶ The variable-complexity response surface modeling method uses analyses of varying fidelity to reduce the design space to the region of interest.^60-62 A procedure for screening unimportant variables is offered by Welch, et al.,⁶³ which uses a kriging-based approximation methodology to identify important variables, detect curvature and interactions, and produce a useful approximation model for two 20 variable problems using only 30-50 runs of the computer code. Booker noted, however, that the interaction between screening methods and optimization still needs to be investigated further. For instance, variables that might not be important during initial experimentation may become important in the later stages of the optimization such that the variables that were initially "screened out" need to be added back into the model.

Problems involving mixed discrete/continuous variables were also mentioned as one of the challenges facing the design of experiments for building approximation models. Booker emphasized that the judicious selection of the experimental design is needed when factors with discrete levels are considered. For instance, the design variables for the power system examples^10-11 mentioned in Section II had ON/OFF levels, mandating the use of an experimental design with two levels. Orthogonal arrays with discrete level choices are also available for problems with two or more discrete levels.²⁸ In general though, problems with both continuous and discrete variables require special consideration and have thus far been solved largely on a problem-by-problem basis.

The discussion that followed the presentations by the panelists revolved primarily around the research topics outlined in the previous sections. Two additional topics that continued to surface during the discussion involved using gradient information in approximation models and sequential methods for model fitting and building. Yang stated that gradient information was usually not readily available in their crashworthiness models; therefore, he did not advocate the use of gradient-enhanced approximations because obtaining gradient information added computational expensive. Booker and Giunta agreed that if the information was readily available, or could be easily obtained through procedures such as automatic differentiation,⁶⁴ then it should be used to improve the accuracy of the approximation model; Booker recommended a paper by Morris, et al.⁶⁵ that offered a method for using gradient information in kriging models and a paper by Koehler⁶⁶ that discusses the use of gradient information in kriging models and its usefulness for estimating transmitted variation. Methods for using gradient information to enhance approximation models were also being developed by several members of the audience.^67-69

Sequential and adaptive approximation methods were also being developed by several members of the audience.^70-74 A sequential method combining response surface models and kriging models was also mentioned,⁷⁵ which used "inherited" sample points in latin hypercube designs as new samples were taken.⁷⁶ The merits of sequentially sampling the design space⁷⁷ to improve the accuracy of the approximation model in one or more regions of interest were also discussed. The work by Osio and Amon⁷⁸ was cited for their multi-stage sampling procedure for building kriging models.

Kriging models for approximation and global optimization were another big topic of discussion. In fact, more papers involving kriging-based approximation models appeared at this MA&O Symposium than at the past symposiums combined. Global optimization procedures using kriging models were discussed,^24,79-80 and a procedure for calibrating a kriging model during optimization that avoided problems with an ill-conditioned correlation matrix was discussed by Booker,⁸¹ see Figure 7. Procedures for updating the theta parameters in a kriging model during continuous experimentation are investigated in Ref. 82.

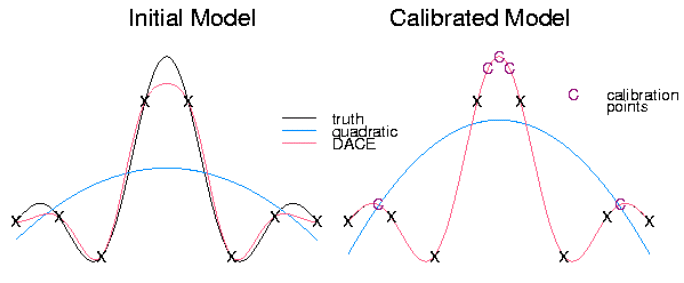

Figure 7. Kriging Model Calibration during Optimization⁸¹

In addition to outlining research directions for advancing approximation methods themselves, panelists also charged the academic community with helping to educate engineers in how to use them. Ghosh emphasized that engineers should gain some basic exposure to approximation methods and their uses. He said that a strong theoretical background was not necessary, but it was important to know how to formulate a problem and interpret results to identify when problems occur. Koch echoed his comments, stating that a basic level of understanding is needed to build, validate, exercise approximation models even though the majority of these processes are automated by software packages. A similar philosophy is used in academia when teaching finite element methods prior to using a finite element software package.

Giunta also stated that many engineers and analysts do not have sufficient background in applied math (i.e., optimization) and statistics to understand approximation methods and how they are used. They are often unfamiliar with the statistical terms and concepts and are overwhelmed by the many choices available for the experimental design (e.g., central composite designs, latin hypercubes, uniform designs, orthogonal arrays) and the approximation model (e.g., kriging, response surfaces, neural net, etc.). He closed in saying that good graphical user interfaces can help mitigate this but considerable "hand-holding" is needed in the meantime. Booker made similar comments, stating that it is helpful to know what an engineer plans to do with the results (e.g., identify main effects, screen variables, use the approximation for optimization) since that often dictates the approach and tools employed in the study.
